Patients are often told they need a “cardiac CT” and leave unsure whether they are having a calcium score, a coronary CT angiogram (CCTA), or a different type of scan. That confusion can get in the way of informed decisions.
Cardiac CT is not a single test. It is a group of related CT‑based studies that answer different clinical questions about coronary artery disease. Choosing the appropriate test improves diagnostic accuracy, reduces unnecessary procedures, and helps clinicians decide what should happen next.
This article explains:
If you are trying to understand which scan your clinician ordered and why, this is a good place to start.
What Is Coronary CT Angiography and How Does a CT Scanner Image the Coronary Arteries?
Coronary CT angiography, also called coronary computed tomography angiography or CCTA, is a noninvasive cardiac imaging study that uses a CT machine and intravenous contrast dye to produce detailed images of the coronary arteries, the blood vessels responsible for delivering oxygenated blood to the heart muscle.
Unlike invasive coronary angiography, which requires arterial catheterization and carries procedural risk, a CCTA scan is performed externally. Contrast is delivered through an IV in your arm. The scanner reconstructs detailed images of the heart and coronary arteries in three dimensions.
The study takes less than 30 minutes. There is no arterial puncture, no sedation, and no catheter recovery period.
Why Heart Rate Matters for CT Coronary Angiography with Contrast
The coronary arteries are small, roughly 2 to 4 millimeters in diameter, and move continuously with each heartbeat. For the CT scanner to produce diagnostically useful images, image acquisition must be synchronized with the cardiac cycle.
A slow, regular heart rate reduces motion artifact and produces sharper CT images. If your resting heart rate is above 65 to 70 beats per minute, a beta-blocker is typically administered before the scan. For CCTA, iodinated contrast is essential. Without it, the coronary artery lumen is indistinguishable from the surrounding soft tissue. The iodine-based contrast agent highlights the vessel interior so that stenosis, plaque, and anatomical variation become visible in the CT images.
Which Patients Are Appropriate Candidates for a Coronary CTA
According to a January 2026 update of the StatPearls CCTA chapter, CCTA is well-established for patients with:
Stable or atypical chest pain and low to intermediate pre-test probability of coronary artery disease
Equivocal or abnormal stress test results requiring further anatomical evaluation
New onset heart failure with no prior known coronary artery disease
Symptoms that suggest coronary disease but have not been confirmed by prior imaging
Patients with high pre-test probability of significant disease, hemodynamic instability, or presentations requiring immediate intervention should proceed directly to invasive evaluation.

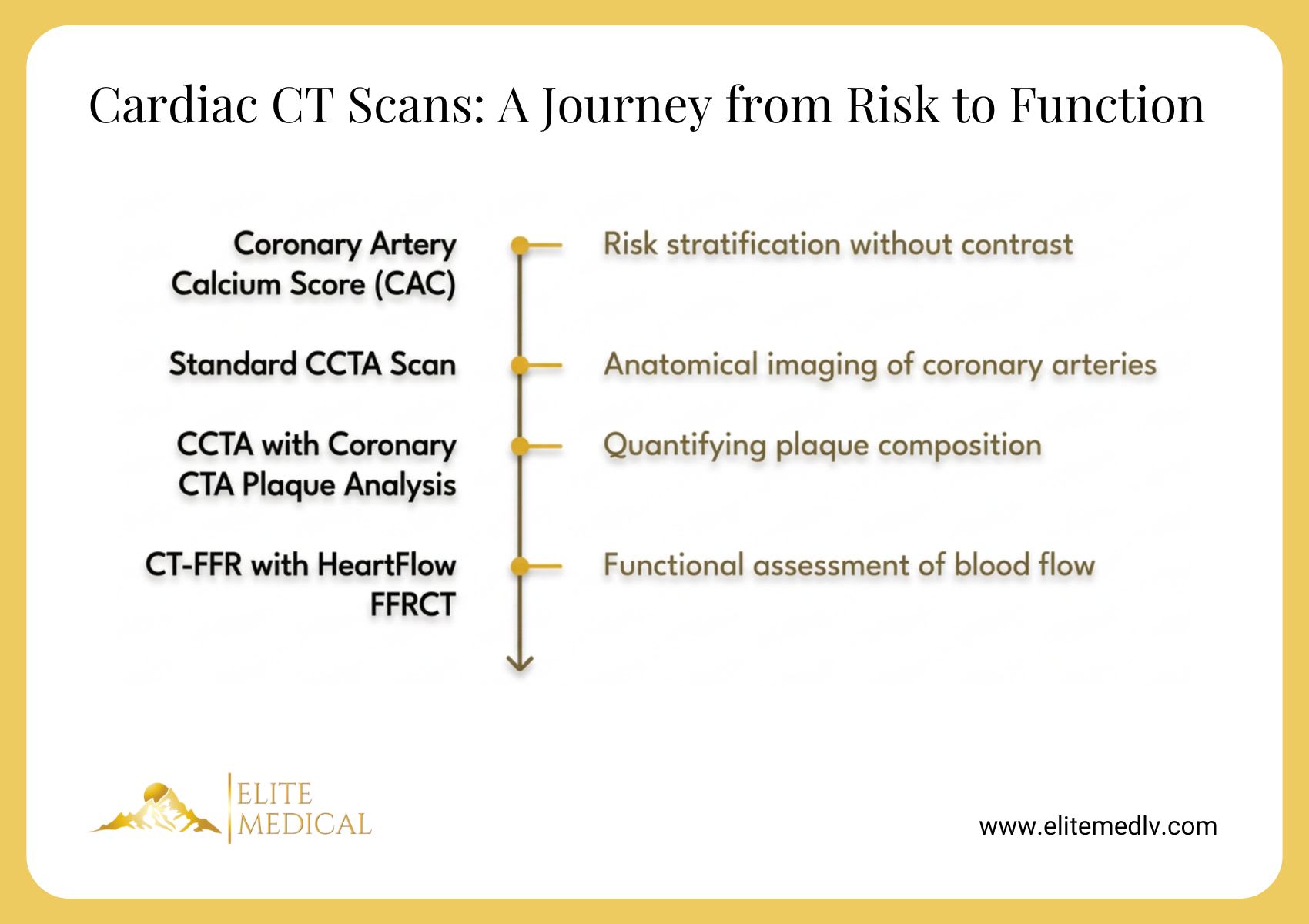

The Main Types of Cardiac CT Scans and CCTA‑based add‑ons
Not all cardiac CT scans are asking the same question. A calcium score is a risk tool. A CCTA is a diagnostic tool. Plaque analysis is a precision tool. CT-FFR is a functional tool. Each one belongs at a specific point in the clinical decision-making process, and none of them is interchangeable with the others.
Type 1 — Coronary Artery Calcium Score (CAC): Risk Stratification Without Contrast
The coronary artery calcium score is a noncontrast cardiac CT study. No dye is required. The scanner detects calcified deposits within the coronary artery walls and quantifies them using the Agatston scoring method. A score of zero indicates no detectable calcified plaque. A score above 400 reflects extensive calcified disease and significantly elevated cardiovascular risk.
What a CAC score cannot tell you: It detects calcified plaque only. Noncalcified and mixed plaque, associated with higher rupture risk, are invisible to this study. A zero score does not rule out obstructive coronary disease.
A 2024 case report published in JACC: Case Reports described what the authors termed the “zero calcium paradox”, a patient with severe coronary stenosis from noncalcified plaque despite a calcium score of zero, underscoring that a calcium-negative result should not be the sole criterion for ruling out significant coronary artery disease in symptomatic patients.
CCTA vs CAC Score — The Clinical Distinction
The calcium score answers whether calcified plaque is present and estimates population-level risk. The CCTA scan answers whether there is a significant narrowing in a specific coronary artery, and what type of plaque is responsible.
Best clinical use: Asymptomatic individuals at intermediate cardiovascular risk who need objective data to guide decisions about statin therapy or whether further cardiac imaging is warranted. It is not the appropriate primary tool for symptomatic evaluation.
Type 2 — Standard CCTA Scan: Anatomical Imaging of the Coronary Arteries
The mechanics of a CCTA scan, including the contrast, the cardiac gating, and the three-dimensional reconstruction, are covered in the opening section above. What matters here is what the test is used to evaluate clinically. The 2021 AHA/ACC chest pain guidance gives CCTA a central role in evaluating many stable or intermediate-risk patients with suspected coronary artery disease, particularly when an anatomical answer will guide next steps.
What the interpreting physician is looking for:
Stenosis severity — whether narrowing greater than 50% is present in any coronary artery segment
Plaque composition — calcified, noncalcified, or mixed
Anatomical variation — including congenital coronary anomalies
Stent patency — in patients with prior coronary stents
A negative CCTA reliably excludes obstructive coronary artery disease in patients at low to intermediate risk. That’s clinically valuable; it’s a study that can definitively answer “no” and spare a patient an invasive procedure.
What it cannot determine on its own: Whether a stenosis is actually restricting blood flow. A 55% narrowing visible on CT coronary angiography may or may not be hemodynamically significant. Anatomy describes the obstruction. It doesn’t measure the consequence.
Best clinical use: Symptomatic patients requiring anatomical evaluation, patients with equivocal stress testing, and anyone where confirming or ruling out coronary artery disease will directly determine what happens next.
Is a CCTA scan the same as a traditional angiogram?
No. A CT coronary angiogram is noninvasive and requires only an IV for contrast delivery. A traditional angiogram requires catheter-based arterial access, carries procedural risk, and typically involves a recovery period.
Type 3 — CCTA with Coronary CTA Plaque Analysis: Quantifying What Standard Imaging Characterizes
Advanced plaque analysis takes the same CCTA images and processes them through AI-enabled software to produce objective, quantified metrics rather than descriptive visual interpretation.
Where a standard CCTA might characterize “mixed plaque with moderate stenosis,” coronary CTA plaque analysis reports total plaque volume across each coronary artery, volume of calcified versus noncalcified versus low-attenuation plaque, and precise stenosis measurements by segment.
This matters clinically because not all plaque carries the same risk. Low-attenuation noncalcified plaque is associated with vulnerable lesions, those at higher risk of rupture and acute coronary events, even when the stenosis appears moderate on standard imaging.
Emerging evidence suggests that certain plaque features, such as low‑attenuation noncalcified plaque, may be associated with a higher risk of future events, even when the degree of stenosis is only moderate.
What plaque analysis does not assess: It characterizes anatomy and plaque biology. It does not directly measure blood flow through the coronary arteries.
Best clinical use: Patients pursuing comprehensive cardiovascular risk assessment, precision medicine patients tracking plaque progression serially over time, and individuals where plaque phenotype will directly influence treatment intensity or monitoring frequency.
Type 4 — CT-FFR with HeartFlow FFRCT: Adding Functional Assessment to Coronary CT Images
CT-FFR addresses the gap that anatomy alone cannot close.
HeartFlow FFRCT takes the CT images from a standard CCTA scan and runs them through computational fluid dynamics modeling to simulate blood flow through each coronary artery. The result is a number, the fractional flow reserve derived from CT, expressed between 0 and 1.0.
An FFRCT value above 0.80 indicates blood flow is not significantly impaired. A value at or below 0.80 indicates the stenosis is hemodynamically significant and is likely causing ischemia. HeartFlow FFRCT is the most widely used FDA‑cleared CT‑FFR platform. According to an NIH evidence brief on FFRCT, it is the only such technology with FDA clearance and uses computer modeling of CCTA images to produce noninvasive 3D FFR models.
The diagnostic performance of FFRCT has been validated across three prospective multicenter trials — DISCOVER-FLOW, DeFACTO, and NXT — enrolling over 600 patients and evaluating more than 1,000 coronary vessels. As summarized in a 2016 PMC review of the trial data, each trial demonstrated high diagnostic performance with significant improvement in specificity compared to CCTA alone, and the NXT trial used the FDA-cleared version of the HeartFlow Analysis software.
Where CT-FFR has limits: HeartFlow FFRCT provides a noninvasive estimate, not a direct invasive measurement. Values in the 0.76 to 0.80 range represent a gray zone where additional evaluation may still be warranted. This is an area of active clinical research, and physician judgment remains essential in borderline cases.
Best clinical use: Patients with intermediate-grade coronary stenosis on CCTA, typically 40 to 70%, where functional significance is uncertain, and the decision between invasive angiography and medical management depends on that answer.
Can a CCTA detect a blockage in the coronary arteries?
Yes. CT coronary angiography with contrast can detect significant narrowing, including stenosis greater than 50%, and characterize the plaque responsible. It cannot determine on its own whether that stenosis is limiting blood flow to the heart. That functional question is addressed through a stress test or CT-FFR analysis.
CCTA vs Invasive Coronary Angiography: When Each Is the Right Choice
Invasive coronary angiography remains the gold standard for defining the coronary lumen and allows pressure measurement and treatment in the same session when needed. It allows direct pressure measurement, invasive FFR assessment, and intervention in the same session when indicated.
For patients with high pre-test probability of significant coronary stenoses, hemodynamic instability, or known coronary artery disease requiring reassessment ahead of a procedure, the invasive route is appropriate.
For patients with stable symptoms, intermediate risk, and no prior known coronary disease, CCTA avoids an invasive procedure that returns negative findings in the majority of cases.
The question is not which test is superior. The question is which test answers the clinical question in front of you with the least exposure and the greatest information yield.
How Cardiac CT Fits Into Guideline‑Based Care
Current guidelines from organizations such as the ACC, AHA, and NICE emphasize choosing testing strategies that align with a patient’s symptoms, risk profile, and pre‑test probability of disease.
Key principles include:
Use noninvasive testing, including CCTA or functional imaging, in patients with stable chest pain and low to intermediate pre‑test probability of coronary artery disease.
Reserve invasive coronary angiography for patients at higher risk, those with high‑risk findings on noninvasive testing, or those with ongoing or unstable symptoms.
Use coronary artery calcium scoring primarily for long‑term risk stratification in selected asymptomatic individuals, not as the main test for symptomatic chest pain.
Consider advanced CCTA‑based tools such as plaque analysis and CT‑FFR when available and when results are likely to influence management, recognizing that their use is still evolving.
For patients, the important point is that different cardiac CT‑based tests answer different questions: some focus on long‑term risk, some define coronary anatomy, and others estimate how much a lesion affects blood flow.
Working with a clinician who can select and interpret the appropriate test helps ensure that imaging leads to clear, actionable decisions rather than additional uncertainty.
How long does a coronary CT angiogram take?
The scan takes 5 to 10 minutes. The full appointment, including preparation and IV placement, runs 30 to 45 minutes. You can drive yourself home and resume normal activity immediately after.
Patient Safety, Contraindications, and What to Tell Your Physician Before the Scan
CCTA is a safe, well-tolerated test for the vast majority of patients. But like any imaging procedure involving contrast and radiation, it has specific contraindications and relative considerations that must be reviewed before proceeding.
Absolute Contraindications
There are a few absolute contraindications to CCTA, but they are firm:
Pregnancy — CT radiation exposure is contraindicated in pregnant patients without exception
Severe anaphylactic reaction to iodinated contrast — A prior severe allergic reaction to iodinated contrast dye is an absolute contraindication and must be disclosed before the scan
Relative Contraindications and Clinical Considerations
These require physician judgment rather than automatic exclusion:
Renal impairment — contrast dye is cleared by the kidneys. Patients with reduced kidney function require pre-procedure assessment and, in some cases, hydration protocols or alternative imaging
Uncontrolled heart rate — image quality degrades significantly above 70 bpm. Patients who cannot tolerate or respond to beta-blockade may not be suitable candidates
Inability to hold breath — the scan requires breath holds of 5 to 10 seconds. Patients with severe respiratory disease who cannot comply will produce non-diagnostic images
Severe coronary calcification — heavy calcified plaque creates a blooming artifact that can limit diagnostic accuracy, particularly for stenosis grading in older patients
Irregular cardiac rhythm — atrial fibrillation and frequent ectopy complicate ECG gating and can degrade image quality, though newer scanner generations handle this better than older protocols
Is a CT coronary angiography painful?
No. The scan itself is painless. You’ll feel a brief warm flush and possibly a metallic taste when the contrast dye is injected; both pass within seconds. No needles beyond the IV, no arterial puncture, no sedation.
A Clinical Note on Risk and Benefit
Every imaging decision involves a trade-off. I don’t order a CCTA because it’s the most advanced tool available. I order it because the clinical question in front of me requires anatomical information that no other noninvasive test can provide as accurately.
If a patient has significant renal impairment, I may start with a calcium score instead and defer contrast imaging until kidney function is optimized. If a patient has a borderline heart rate, we prepare with beta-blockade in advance rather than proceeding and accepting a non-diagnostic result.
The goal is always a test that answers the question cleanly, not a test that generates more uncertainty than it resolves.
Precise Imaging. Clinical Answers. No Guesswork.
In clinical practice, many patients who experience a first cardiac event have not previously been diagnosed with coronary artery disease. That does not always mean the disease appeared without warning. Sometimes, it means the right imaging question had not yet been asked.
A standard stress test misses non-obstructive plaque entirely. A calcium score of zero doesn’t rule out noncalcified disease. And neither study tells you whether a stenosis is actually restricting blood flow.
